ASIC.TOOLS / Model overview

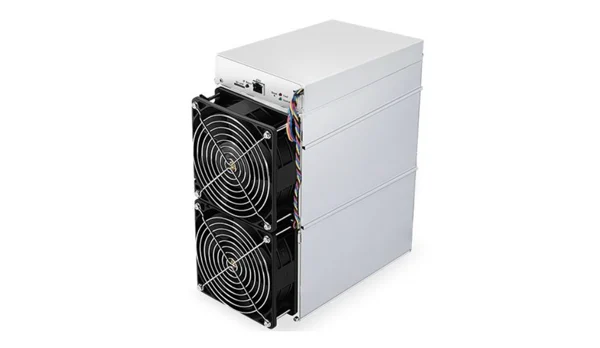

Bitmain Antminer Z15K (565K)

Equihash2026Air cooling

Hashrate: 565 kSol/s
Power: 2483 W

Market-listed September 2026 batch; verify the nameplate and formal BITMAIN documents before purchase or deployment.

Manuals & firmware

Everything you need to set up and maintain this miner.

Manufacturer manual

For a related series — check compatibility

Open PDF manual

Firmware

No verified firmware file is currently available.

Check firmware availability ↗

Check the model and control-board revision before installing.

Specifications

Manufacturer: Bitmain
Algorithm: Equihash
Year listed in catalogue: 2026
Cooling: Air cooling
Noise: Not specified
Weight: Not specified

Operating profiles

Equihash

Hashrate: 565 kSol/s
Power: 2483 W

Network & access

Default IP / address mode: DHCP — no fixed default IP; the router assigns the address
Default username: root
Default password: root

How to find the miner

IP Reporter / IP Report button

Change the factory password immediately after first login. Firmware and used equipment may have different credentials.

Access data checked 14 September 2026 · Verification source ↗

Sources & configuration notes

Announced / future catalogue date

Power figures refer to the listed profile. External pumps, cooling and infrastructure are not included.

Release dates describe a model or batch in the source catalogue, not necessarily the first launch of the series. Verify the exact configuration with the manufacturer.

The October 1 discovery feed added a distinct 565 kSol/s Z15K batch, and current specialist seller listings independently show 565 kSol/s at 2483 W. BITMAIN has not published a standalone specification or manual for this batch. The feed conflicts internally: its PSU field says 2483 W while the algorithm record says 2672 W. The catalogue retains the repeatedly listed 2483 W profile and flags the discrepancy; noise, weight and exact shipment status are omitted because public listings conflict.

2026-10-01 · ASIC Miner Value discovery feed; 565 kSol/s listing cross-checked with current specialist sellers ↗
